New 4-Ton (8,818 lb) Four-Post Alignment Lift with Wheel-Free Scissor Lift – Pneumatic Lock & 24V Control HTL4340X
1 / 7
New 4-Ton (8,818 lb) Four-Post Alignment Lift with Wheel-Free Scissor Lift – Pneumatic Lock & 24V Control HTL4340X
HFL 4340X 4-Ton (8,818 lb) Four-Post Alignment Lift with Wheel-Free Scissor Lift – Pneumatic Lock & 24V Control Car hoist Car lift Vehicle Lift
🧰 Technical Specifications:
- Lifting Capacity: 4,000 kg (8,818 lbs)
- Min. Height: 235 mm (9.25")
- Max. Lifting Height: 1,900 mm (74.8")
- Overall Length: 5,552 mm (218.7")
- Overall Width: 3,422 mm (134.7")
- Runway Length: 5,000 mm (196.9")
- Runway Width: 560 mm (22")
- Width Between Posts: 2,924 mm (115.1")
- Width Between Platforms: 905 mm (35.6")
- Lifting/Lowering Time: 55 sec / 45 sec
- Motor Power: 2.2 kW (3 HP)
- Power Supply: 220V / 60Hz / 1Ph
✔️ Technical Features:
- Built-in wheel-free scissor lift for tire and brake access
- Front recesses and side slip plates for precision alignment work

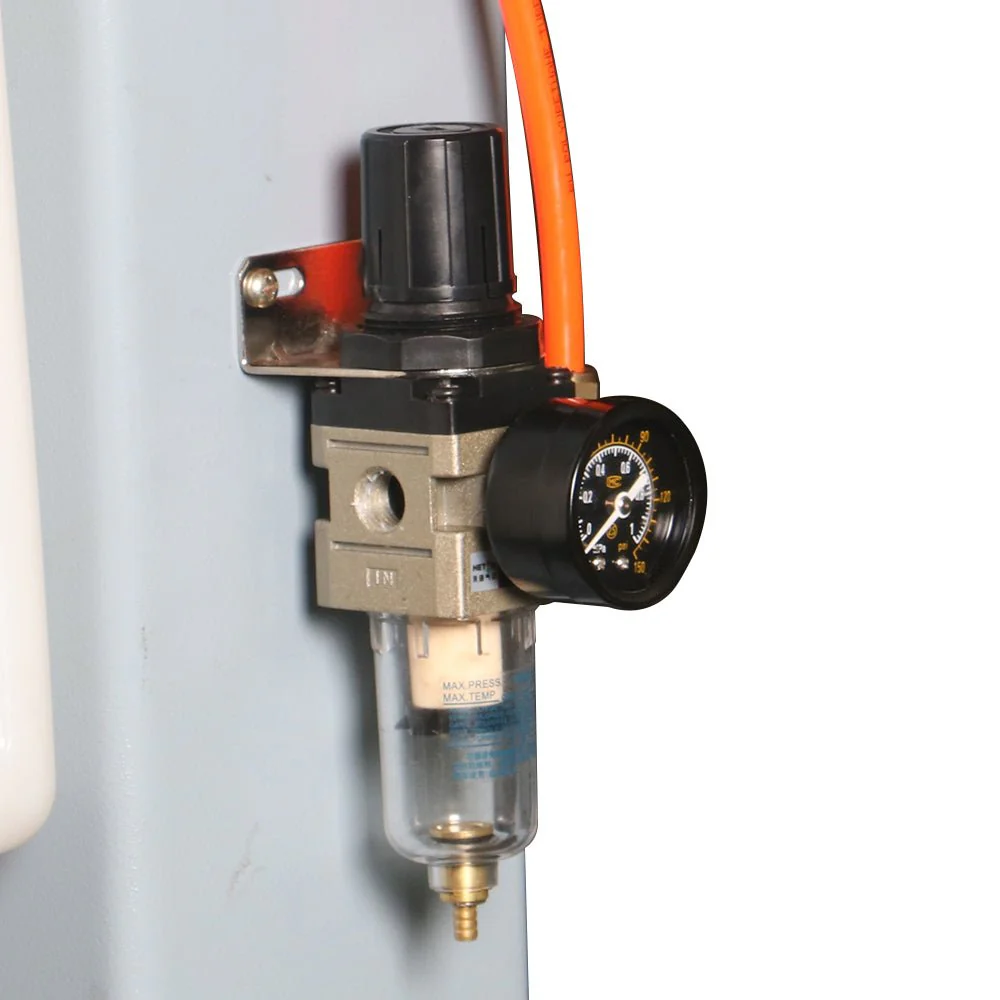

- Pneumatic safety lock release for convenience and security
- 24V low-voltage control system enhances operator safety
- Non-skid drive-on ramps for added safety and stability
- Aluminum motor power pack with efficient heat dissipation
- Heavy-duty construction ideal for alignment bays and service shops
$2,544.63
Original: $7,270.37
-65%New 4-Ton (8,818 lb) Four-Post Alignment Lift with Wheel-Free Scissor Lift – Pneumatic Lock & 24V Control HTL4340X—
$7,270.37
$2,544.63Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
HFL 4340X 4-Ton (8,818 lb) Four-Post Alignment Lift with Wheel-Free Scissor Lift – Pneumatic Lock & 24V Control Car hoist Car lift Vehicle Lift
🧰 Technical Specifications:
- Lifting Capacity: 4,000 kg (8,818 lbs)
- Min. Height: 235 mm (9.25")
- Max. Lifting Height: 1,900 mm (74.8")
- Overall Length: 5,552 mm (218.7")
- Overall Width: 3,422 mm (134.7")
- Runway Length: 5,000 mm (196.9")
- Runway Width: 560 mm (22")
- Width Between Posts: 2,924 mm (115.1")
- Width Between Platforms: 905 mm (35.6")
- Lifting/Lowering Time: 55 sec / 45 sec
- Motor Power: 2.2 kW (3 HP)
- Power Supply: 220V / 60Hz / 1Ph
✔️ Technical Features:
- Built-in wheel-free scissor lift for tire and brake access
- Front recesses and side slip plates for precision alignment work
- Pneumatic safety lock release for convenience and security
- 24V low-voltage control system enhances operator safety
- Non-skid drive-on ramps for added safety and stability
- Aluminum motor power pack with efficient heat dissipation
- Heavy-duty construction ideal for alignment bays and service shops
